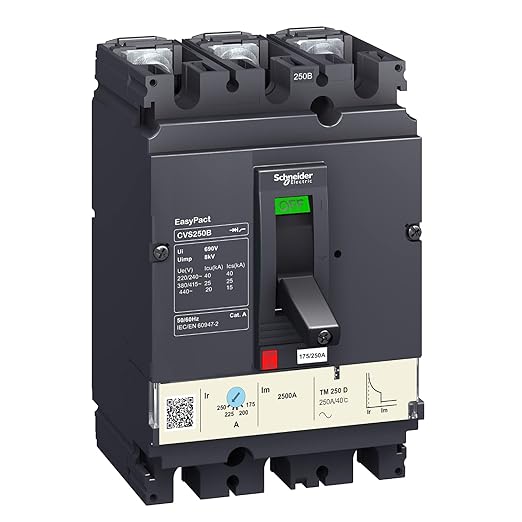

Schneider EasyPact CVS MCCB LV525303 – 250A, 3P3D, 25kA at 415V, TM250D Trip Unit, IEC 60947‑2

Schneider Electric EasyPact CVS MCCB LV525303 is a three‑pole moulded case circuit breaker from the CVS250B frame, designed for protection and control of low‑voltage distribution in commercial and industrial installations. It has a 250A rated current at 40°C and uses a TM250D thermal‑magnetic trip unit, with adjustable long‑time (overload) protection and fixed magnetic (short‑circuit) protection. The breaker offers a rated ultimate breaking capacity Icu of 25kA at 380/415V AC (and higher at lower voltages), conforming to IEC 60947‑2, making it suitable for feeders and main incomers with high prospective fault currents. This model is a 3P/3D configuration: three poles, all three protected and switching, for three‑phase systems without neutral. It is a fixed‑mounted device with Class II front insulation, toggle operation and front screw terminals, intended for mounting on a back‑plate inside panels or MCCB enclosures. The EasyPact CVS range provides good current‑limiting performance, clear contact‑position indication, and compatibility with a range of accessories such as rotary handles, shunt and undervoltage releases, and auxiliary contacts. Brand: Schneider Electric Range: EasyPact CVS100…250 Frame / device: CVS250B Reference: LV525303 Type: Moulded Case Circuit Breaker (MCCB) for distribution Poles: 3P, 3D (3 poles protected and switched) Rated current In: 250A at 40°C Trip unit: TM250D thermal‑magnetic; long‑time pickup Ir adjustable typically 0.7–1 × In (175–250A) Network: AC, 50/60 Hz Rated operational voltage Ue: up to 440V AC Rated ultimate breaking capacity Icu: 25kA at 380/415V AC 50/60 Hz (rms) Rated service breaking capacity Ics: generally up to 50–100% of Icu depending on voltage (per CVS250B data) Rated impulse withstand Uimp: 8kV Utilisation category: Category A ​ Mounting: Fixed, back‑plate mounting, front screw terminals
