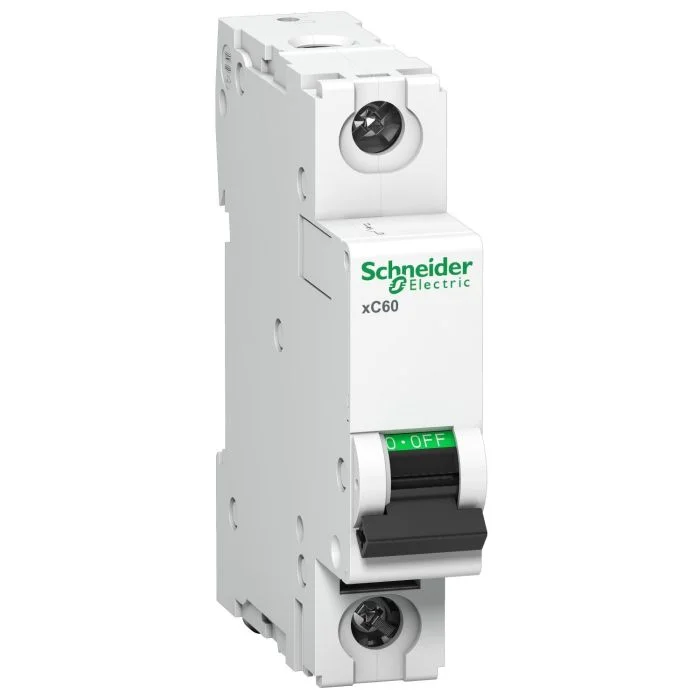

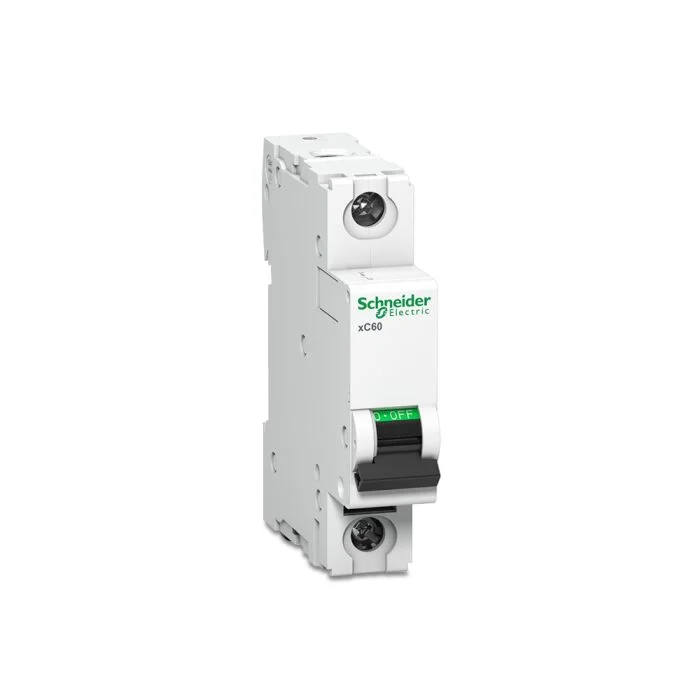

Schneider Electric Miniature Circuit Breaker Acti9 xC60 1P C curve 32A

Schneider Electric Acti9 xC60 A9N1P32CGN is a single‑pole miniature circuit breaker for low‑voltage distribution boards in residential and commercial installations. It provides thermal‑magnetic protection against overloads and short circuits on 230/240V AC single‑phase circuits up to 32A, with a C‑curve trip suitable for general‑purpose and moderately inductive loads such as lighting, sockets and small motors. The device offers a rated short‑circuit breaking capacity of 10kA at 220–240V AC in accordance with IS/IEC 60898‑1, making it appropriate for systems with high prospective fault currents. It is part of the Acti9 range and uses biconnect terminals and serrated contacts to improve cable pull‑out strength and ease of wiring, with clear ON/OFF contact indication on the toggle. The breaker is DIN‑rail clip‑on mounted (35 mm rail) and is compatible with Acti9 auxiliary modules and Vigi add‑on RCD blocks for remote indication, control and earth‑leakage protection where required. Designed for high mechanical and electrical endurance (up to about 20,000 mechanical and 10,000 electrical operating cycles), it suits frequent switching and long‑term use in distribution boards. Brand: Schneider Electric Range: Acti9, xC60 series Product type: Miniature circuit breaker (MCB) Poles: 1P, 1 protected pole Rated current (In): 32A Trip unit: Thermal‑magnetic ​ Tripping curve: C curve (instantaneous trip at 5–10 × In) Rated operational voltage (Ue): 220–240V AC, 50/60 Hz Rated short‑circuit breaking capacity (Icn): 10kA at 240V AC, IS/IEC 60898‑1 Application: Final distribution circuits, overload and short‑circuit protection Mounting: 35 mm DIN rail, clip‑on ​ Terminals: Biconnect/tunnel type terminals, up to 25 mm² flexible or 35 mm² rigid conductors, 3.5 N·m tightening torque ​ Dimensions: Height ~85 mm, width 18 mm (1 module), depth ~77.5 mm ​ Indicators: ON/OFF contact position indication via toggle Compatibility: Acti9 C60 auxiliaries and Vigi add‑on RCD blocks
